Call For Pricing
Price: $76,197

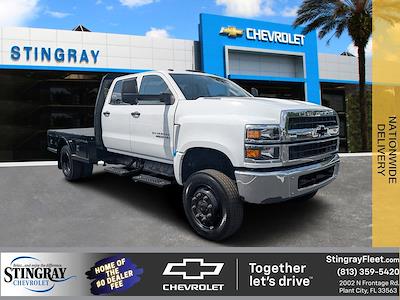

2024 Chevrolet Silverado 5500 Crew Cab DRW 4WD Knapheide Flatbed Truck

Stock #RH464378
Dealer Video
Vehicle Transportation
Get a quote to transport this specific vehicle from the dealer's location straight to your business. Powered by Crestline Auto Transport.

Chassis Details

Mileage
68
Stock Number
RH464378
Stock Type
New
Year
2024
Make
Chevrolet
Model
Silverado 5500
Class
5
GVWR
16,500
Drivetrain
4WD
Wheelbase
175
Cab Type
Crew
Vehicle Trim
Work Truck
Vehicle VIN
1HTKJPVK7RH464378
Interior Color
Dark Ash seats with Jet Black interior accents
Exterior Color Description
Summit White
Engine Cylinder Count
8
Engine
Turbocharged Diesel V8 6.6L/402
Transmission Type
Automatic
Rear Wheels
Dual
Fuel Type
Diesel
Engine Model
L5D
Engine Size (L)
6.6
Brake Type
Hydraulic

Vehicle Options

  • BATTERIES HEAVY-DUTY DUAL 1300 COLD-CRANKING AMPS includes battery box mounted to left side under cab
  • FRONT STABILIZER BAR
  • 30 000 LB. GCWR (13 607 KG)
  • DARK ASH SEATS WITH JET BLACK INTERIOR ACCENTS VINYL SEAT TRIM
  • WHEELS 19.5 X 6.75 STEEL BLACK PAINTED 8-HOLES HUB PILOTED (STD)
  • BACKUP ALARM (Includes (SFW) SEO Calibration for backup alarm.
  • GLASS DEEP-TINTED
  • REAR SUSPENSION 15 500 LB. (7 031 KG) MULTI-LEAF VARI-RATE
  • SKID PLATE STEEL FRAME-MOUNTED PROTECTS THE TRANSFER CASE FROM THE GROUND
  • AUDIO SYSTEM 4.2 DIAGONAL COLOR DISPLAY AM/FM stereo with USB port and auxiliary jack (STD)
  • SUMMIT WHITE
  • GRILLE CHROME
  • ENGINE BLOCK HEATER
  • BUMPER FRONT CHROME
  • ALTERNATORS DUAL 150 AMPS AND 220 AMPS EACH
  • POWER TAKE OFF ENGINE CONTROL PROVISIONS Access is available on left-hand and right-hand side
  • LICENSE PLATE KIT FRONT
  • TIRES REAR 225/70R19.5G TRACTION BLACKWALL PIRELLI Max Axle Load: 15 000 lb.
  • BACK-UP ALARM CALIBRATION This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting
  • POWER OUTLET 110-VOLT AC
  • REMOTE KEYLESS ENTRY
  • WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
  • SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
  • PROVISION FOR CAB ROOF-MOUNTED LAMP/BEACON provides an overhead console mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp
  • BATTERY TOP POST THREADED BATTERY JUMP START STUD (located on battery box)
  • SPARE TIRE DELETE (STD)
  • 4500 HD SERIES
  • REAR AXLE 4.30 RATIO Max road speed: 75 MPH
  • WHEELBASE 175 (444.5 CM) 60 CA (STD)
  • AUXILIARY HARNESS 3' FOR HEADLAMPS AND TURN SIGNALS
  • HORN DUAL-NOTE
  • PAINT SOLID
  • SHOCK ABSORBERS REAR
  • REAR AXLE 15 500 LB. (7 031 KG) DANA SPICER S16-140 SINGLE REDUCTION
  • ELECTRICAL PROVISIONS REAR OF FRAME UPFITTER BODY BUILDER WIRING includes Sealed Connectors for Tail/Amber Turn/Marker/Backup/Accessory Power/Ground and Sealed Connector for Stop/Turn
  • RECOVERY HOOKS FRONT FRAME-MOUNTED BLACK
  • FRONT AXLE 7 500 LB. DANA SPICER 60-256 SINGLE-REDUCTION FRONT DRIVING
  • DPF DIESEL PARTICULATE FILTER MANUAL REGENERATION customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown
  • TIRES FRONT 225/70R19.5G HIGHWAY BLACKWALL PIRELLI Max Axle Load: 7 940 lb. (STD)
  • AXLE LIMITED SLIP DANA SPICER TRUETRAC TORQUE PROPORTIONING LIMITED SLIP
  • LABEL INFORMATION CLEAN IDLE DOOR LOCATION
  • RUGGED DUTY SERVICE TRANSMISSION AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE ALLISON A1750RDS ratios 3.10 1ST 1.80 2ND 1.40 3RD 1.00 4TH 0.70 5TH 0.61 Rugged Duty Series
  • MIRRORS OUTSIDE BLACK HEATED POWER-ADJUSTABLE HIGH-VISIBILITY VERTICAL CAMPER-STYLE AND LOWER CONVEX SPOTTER GLASS MANUAL-FOLDING. Convex glass is not heated and not power adjustable. 102 Wide Load
  • GVWR 16 500 LB. (7484 KG) (STD)
  • ENGINE DURAMAX 6.6L TURBO-DIESEL V8 B20-DIESEL COMPATIBLE 350 hp @ 2500 rpm 750 lb.-ft. torque @ 1400 rpm (STD)
  • Turbocharged
  • Four Wheel Drive
  • Power Steering
  • ABS
  • Steel Wheels
  • Tires - Front All-Season
  • Tires - Rear All-Season
  • Running Boards/Side Steps
  • AM/FM Stereo
  • MP3 Capability
  • Auxiliary Audio Input
  • Split Bench Seat
  • Vinyl Seats
  • Pass-Through Rear Seat
  • Rear Bench Seat
  • Adjustable Steering Wheel
  • Power Windows
  • Power Door Locks
  • Cruise Control
  • A/C
  • Traction Control
  • Stability Control
  • Traction Control
  • Daytime Running Lights
  • Automatic Headlights
  • Driver Air Bag
  • Passenger Air Bag
  • Front Side Air Bag
  • Front Head Air Bag
  • Rear Head Air Bag
  • Passenger Air Bag On/Off Switch
  • Back-Up Camera
  • View All

Body Details

Manufacturer
Body Type
Flatbed Truck
Body Line
PGTC Gooseneck
Body Model
PGTC-910
Body Material
Steel
Body Width
96"
Body Length
118"
Floor Material
Steel
Floor Gauge
12
Hitch Type
Gooseneck
Lighting Type
LED
Lighting Description
All LED Clearance and Marker Lights
Rub Rail Description
Installed on Both Sides of Bodies for the Strap, Side and Stake Pocket Protection
Trailer Plug Type
7-Way
Mud Flaps Description
Mud Flaps
Alarm Type
Back Up
Safety Equipment Description
First Aid Kit, Fire Extinguisher and Safety Triangles
Camera Description
Factory Backup Camera

PGTC Gooseneck Features

SKIRTED GOOSENECK STYLING
  • with integrated front and rear toolboxes
  • RUB RAILS
  • installed on both sides of bodies for strap, side and stake pocket protection
  • RUGGED 1/8” THICK TREAD PLATE FLOOR
  • with 6” structural channel long sills (4” on 8’ models)
  • B&W TURNOVERBALL
  • rated at 30,000 lbs. gross trailer weight, with 7500 lb. tongue weight
  • BOLT ON RECEIVER HITCH
  • Choose from 18K or 21K hitch, ordered separately to ship loose
  • 7-WAY TRAILER PLUG
  • at rear of body
  • SAFETY CHAIN ATTACHMENT POINTS
  • included in gooseneck box and at receiver hitch
  • DURABLE OVEN-CURED COAT
  • finish painted black
  • ALL LED CLEARANCE AND MARKER LIGHTS
  • for visibility and added safety
  • INTEGRATED OVAL LED B/U AND S/T/T LIGHTS
  • included in bulkhead and rear skirt
  • CONTINUOUS STAINLESS STEEL HINGES
  • are pry-proof and corrosion-resistant
  • DOUBLE PANELED DOORS
  • consist of 20-gauge, two sided A-40 galvanneal steel
  • AUTOMOTIVE QUALITY, ROTARY-STYLE LATCHES
  • make opening and closing easy
  • Call For Pricing

    Pricing Details

    MSRP $75,097
    REBATES - $5,800
    SALE DISCOUNT - $5,000
    UPFIT BODY + $11,900
    Price $76,197
    Total Savings $10,800
    Additional Upfit Cost

    Vehicle available NOW in Plant City, FL.

    Contact Stingray Chevrolet for more info.

    (813) 737-0393
